Highlights:
1.Support 4 ASI input ports and 1 IP
2.Constant temperature crystal oscillator, as high as 0.1ppm stability
3.External 10MHz reference clock input
4.Support BISS scrambling
5.Output frequency range: 50~960MHz

Details:

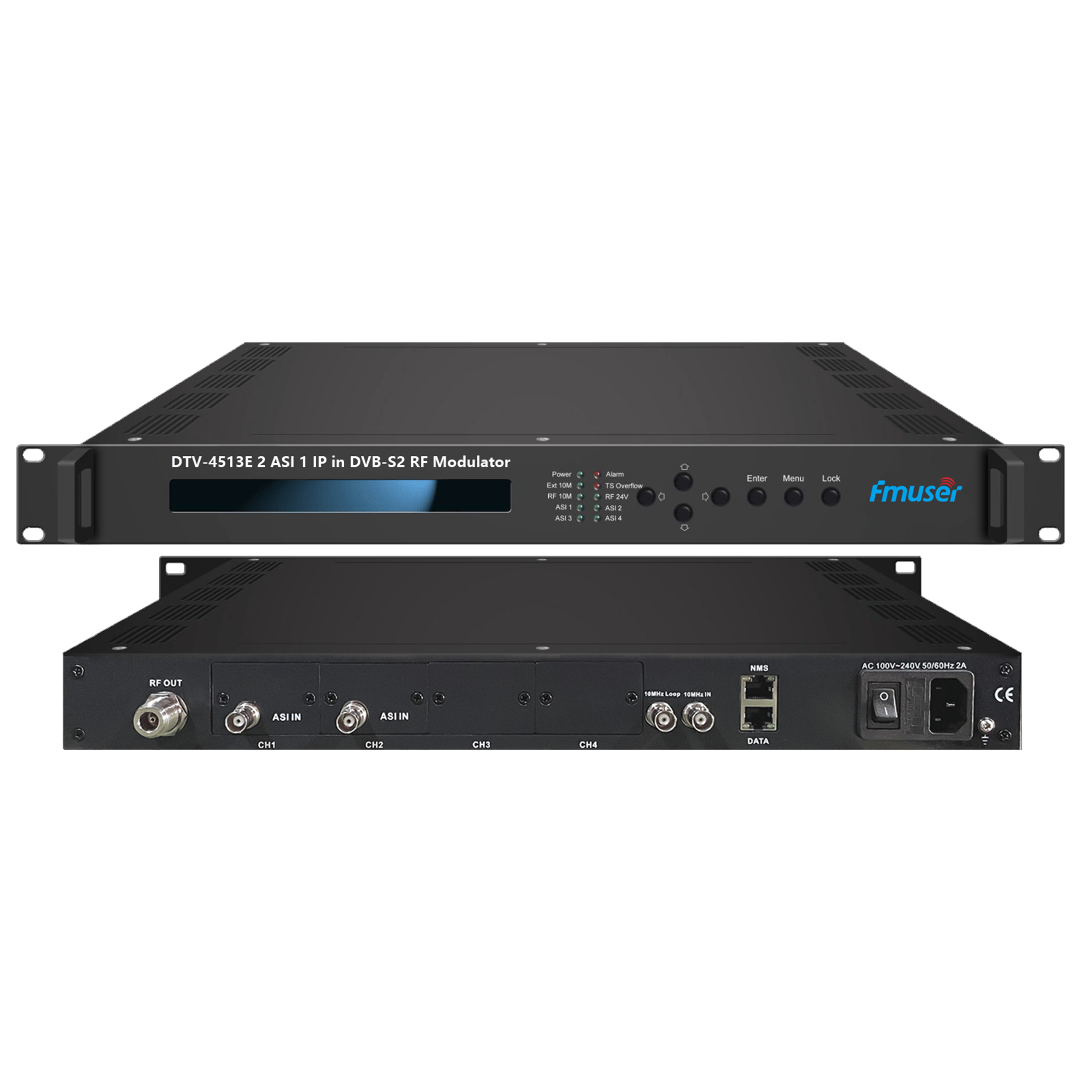

FMUSER DTV-4513E/F 2/4 ASI 1 IP(UDP) in DVB-S/S2 RF/IF Modulator

Overview:

FMUSER DTV-4513E is a high-performance modulator that has been developed in accordance with the DVB-S2 (EN302307) standard; which is the second-generation standard for European broadband satellite telecommunications. This modulator is designed to convert input satellite signals and/or ASI and IP streams into digital DVB-S/S2 RF output. It also includes BISS scrambling mode; which helps to ensure the safe distribution of your programs.
The DVB-S2 modulator is equipped with a web-server NMS software and an LCD in the front panel; making it easy to reach local and remote control. With its high cost-effective design; the FMUSER

DTV-4513E DVB-S2 modulator is widely used for broadcasting; interactive services; news gathering.

FMUSER DTV-4513F is a high-performance modulator developed in accordance with the DVB-S2 (EN302307) standard; which is the second-generation standard for European broadband satellite telecommunications. This modulator is designed to convert input ASI and IP signals alternatively into digital DVB-S2 IF output.

FMUSER DTV-4513E/F is a reliable and efficient solution for converting input ASI and IP signals into digital DVB-S/S2 RF/IF output. Its advanced features and ease of use make it an excellent choice for broadcasting and other broadband satellite applications.

Features:

FMUSER DTV-4513E:

The DTV-4513E is a modulator that fully complies with both DVB-S2 (EN302307) and DVB-S (EN300421) standards. It has ASI and/or DVB-S2 inputs for re-mux or pass through; with 4 ports for ASI and S2 tuner input combination.

It also supports IP (1000/100M) signal input for re-mux or pass through and multiplexing and PSI/SI edit.Supports QPSK; 8PSK; 16APSK; and 32APSK constellations; and has optional RF CID setting. It features a constant temperature crystal oscillator with up to 0.1ppm stability; and supports coupling 10Mhz clock output through the RF output port. It also supports 24V power output through the RF output port and BISS scrambling.

In addition; the modulator supports SFN TS transmission and has an output frequency range of 950~2150MHz with 10KHz stepping. It can be locally and remotely controlled with a Web-server NMS; making it easy to operate and manage. Overall; this modulator is an excellent choice for anyone looking for a reliable and flexible solution that complies with industry standards.

FMUSER DTV-4513F:

The FMUSER DTV-4513F is a modulator that fully complies with both DVB-S2 (EN302307) and DVB-S (EN300421) standards. It has 4 ASI inputs with 3 ASI inputs for backup. It also supports IP (100M) signal input.

The DTV-4513F features a constant temperature crystal oscillator with up to 0.1ppm stability and an external 10MHz reference clock input. It supports BISS scrambling and can be locally and remotely controlled.The output frequency range of the modulator is 50~960MHz; making it suitable for a variety of applications.

Overall; this modulator is a reliable and efficient solution for converting ASI and IP signals into digital output. Its advanced features and ease of use make it an excellent choice for broadcasting and other related applications.

Principle Chart:
FMUSER DTV-4513E
FMUSER DTV-4513F
Specification:

FMUSER DTV-4513E

IP Input	1*IP Input (RJ45; 1000/100M TS Over UDP)
ASI Input	Supporting both188/204 Byte Packet TS Input
	1-4 ASI Inputs (Connector: BNC; Impedance 75Ω)
Tuner Input (0-4 inputs optional)	DVB-S	Input Frequency		950~2150MHz
		Symbol rate		0.5~45Msps
		Signal Strength		- 65- -25dBm
		FEC		1/2; 2/3; 3/4; 5/6; 7/8
		Constellation		QPSK
		Max input bitrate		≤160 Mbps
	DVB-S2	Input Frequency		950~2150MHz
		Symbol rate		QPSK/8PSK /16APSK :0.5~45 Msps 32APSK: 0.5~40Msps
		FEC		QPSK: 1/2; 3/5; 2/3; 3/4; 4/5; 5/6; 8/9; 9/10 8PSK: 3/5; 2/3; 3/4; 5/6; 8/9; 9/10 16APSK: 2/3; 3/4; 4/5; 5/6; 8/9; 9/10 32APSK: 3/4; 4/5; 5/6; 8/9; 9/10
		Constellation		QPSK; 8PSK; 16APSK; 32APSK
		Max input bitrate		≤160 Mbps
	DVB-S2X	Input Frequency		950~2150MHz
		Symbol rate		QPSK/8PSK /16APSK :0.5~45 Msps 8APSK/32APSK: 0.5~40Msps
		FEC		QPSK: 1/2; 3/5; 2/3; 3/4; 4/5; 5/6; 8/9; 9/10; 13/45; 9/20; 11/20 8PSK: 3/5; 2/3; 3/4; 5/6; 8/9; 9/10 8APSK: 5/9-L; 26/45-L 16APSK: 2/3; 3/4; 4/5; 5/6; 8/9; 9/10; 1/2-L; 8/15-L; 5/9-L; 26/45; 3/5; 3/5-L; 28/45; 23/36 ; 2/3-L; 25/36; 13/18; 7/9; 77/90 32APSK: 3/4; 4/5; 5/6; 8/9; 2/3-L; 32/45; 11/15; 7/9
		Constellation		QPSK/8PSK/8APSK/16APSK/32APSK
		Max input bitrate		≤160 Mbps
Multiplexing	Maximum PID Remapping		128 input per channel
	Function		PID remapping (automatically or manually)
			Accurate PCR adjusting
			Edit PSI/SI tables (PAT/PMT/SDT/CAT/NIT)
10MHz Reference Clock	1External 10MHz Input (BNC Interface); 1Inner 10MHz Reference clock
RF Output	RF Range: 950 ~ 2150 MHz; 10KHz stepping
	Output Level Attenuation:-26 ~ 0 dBm; 0.5dBm Stepping
	MER≥40dB
	Connector: N type; Impedance 50Ω; N to F adapter

FMUSER DTV-4513F

ASI Input	4 ASI input ( 3 ASI for backup)
	Supporting 188Byte Transmission Stream Packet
	ASI Input Connector: BNC; Impedance 75Ω
IP Input	1*IP Input (Rj45; 100M TS Over UDP)
10MHz Reference Clock	1External 10MHz Input (BNC Interface); 1Inner 10MHz Reference Clock
IF Output	Range: 50 ~ 960 MHz; 1KHz stepping
	Output Level Attenuation: 3dBm~28.5dBm; 0.5dBm Stepping
	MER≥40dB
	Connector: N type; impedance 50Ω
Channel Coding and Modulation		DVB-S	DVB-S2
	Outer coding	RS Coding	BCH Coding
	Inner coding	Convolution	LDPC Coding

	FEC/ Convolution Rate	1/2; 2/3; 3/4; 5/6; 7/8	QPSK: 1/2; 3/5; 2/3; 3/4; 4/5; 5/6; 8/9; 9/10 8PSK: 3/5; 2/3; 3/4; 5/6; 8/9; 9/10
	Constellation	QPSK	QPSK; 8PSK
	Roll-off Factor	0.2; 0.25; 0.35	0.2; 0.25; 0.35
	Symbol Rate	0.05~45Msps	0.05~45Msps
	BISS Scramble	Mode0; mode1; mode E
System	Web-server NMS
	Language: English
	Ethernet software upgrade
Miscellaneous	Dimension	482mm×410mm×44mm
	Temperature	0~45℃(operation); -20~80℃ (storage)
	Power	100-240VAC±10%; 50Hz-60Hz

Equipment List:

	DTV-4513E	DTV-4513F	DTV-4514	DTV-4514F
DVB-S/S2	♦	♦	♦	♦
DVB- S2X			♦	♦
QPSK; 8PSK	♦	♦	♦	♦
16APSK; 32APSK	♦		♦	♦
8APSK-L; 16APSK-L; 32APSK-L			♦	♦
RF output (950-2150MHz)	♦		♦
IF output ( 50 - 960MHz)		♦		♦

Weight	6.001 kg
Color	DTV-4513E 2 ASI 1 IP in DVB-S/S2 RF, DTV-4513F 4 ASI 1 IP in DVB-S/S2 IF
